VSR-T38

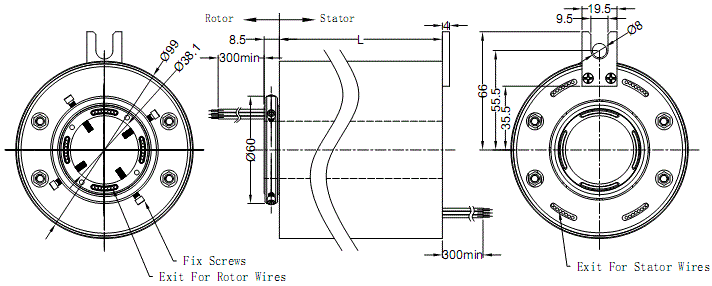

T38 slip ring capsule is a standard silpring with a 38.1mm (1.5 Inch) through-bore for routing of hydraulic, pneumatic lines or driver shaft. This design features long life,fiber precious metal brush contact technology for ultimate performance in many challenging applications.  Aluminum body,double precision roller bearings provide smoother running,lower torque and lower electrical noise than competitive slip rings. A.)Outline (Unit:mm) Internal diameter(mm) 38.1 Outer diameter (mm) 99 Length(mm) L=21.35+P*4.0+S*3.0 P：Channels For Power （10A） S：Channels For Signal （5A） B.)Specification Voltage 38 0V AC/DC Current Rating 5,10A/Ring Speed 250PRM Insulation Resistance 1000M Ω @500VDC Dielectric Strength AC 600V@60Hz, 60S Electrical Noise 70 milliohms MAX @5rpm,50milliamps,6V DC Contact Material Precious metal Lead Size/Type 0.5mm 2 Teflon wire Operate Temp -20℃～+80℃ Storage Temp -30℃～+90℃ C.)Feature ● 38.1mm through-bore,Compact 99mm outside diameter; ● Flexible Module design; ● Multi circuits/channels design can deliver both power & signals at the same time; ● Speeds up to 2500 rpm max.(Option); ● No need to maintain. D.)Application ● Rotary tables, test equipment,cable reels; ● Robots,processing equipment and rotary sensors; ● Exhibit / display equipment; ● Medical equipment. E.)Option ● Higher voltage and current  (Up to 100A,2000V); ● Higher speed (Up to 5000Rpm); ● Wider range of temperature (-60~200℃); ● Higher protection class (up to IP67 & Explosion-proof type); ● Style of exits for lead wires; ● Flange for installation.
