| Model | Image | Voltage | Current Rating | Speed | Insulation Resistance | Dielectric Strength | Electrical Noise | Contact Material | Operate Temp | Storage Temp | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VSR-H2 |
|
240V AC/DC | 2,7,10,20A/Ring | 400PRM | 1000MΩ@500VDC | AC 600V@60Hz, 60S | 10 milliohms MAX @5rpm,50milliamps,6V DC | Precious metal | -20℃～+80℃ | -30℃～+90℃ | |
| VSR-H4 |
|
24 0V AC/DC | 2, 7A/Ring | 400PRM | 1000MΩ@500VDC | AC 600V@60Hz, 60S | 10 milliohms MAX @5rpm,50milliamps,6V DC | Precious metal | -20℃～+80℃ | -30℃～+90℃ | |
| VSR-H4+ |
|
24 0V AC/DC | 2,14 A/Ring | 400PRM | 1000MΩ@500VDC | AC 600V@60Hz, 60S | 10 milliohms MAX @5rpm,50milliamps,6V DC | Precious metal | -20℃～+80℃ | -30℃～+90℃ | |

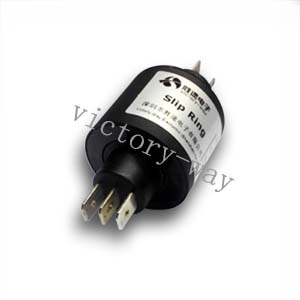

| VSR-H3+ |
|
||||||||||
| VSR-H3 |
|
||||||||||
| VSR-H2+ |
|
