DTS-38X3P120

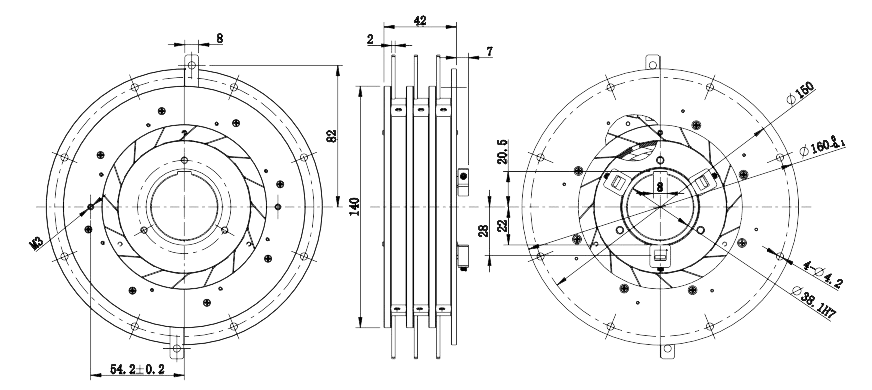

Description DTS-38X3P360 slip rings is designed for passing 3 ways 360A current in narrow space, of which the current was lead out by copper strip from stator side and rotor side. The shaft of slip rings is made by heat-resisting plastic. There is a key slot in the shaft to fix and drive the shaft. Silver alloy contact material was brazed welding on the beryllium copper spring. And the spring components are fixed on the brush holder. Separated stator part fits for narrow space. This slip ring can work well in 3000RPM, based on good thermal design & heat-resisting materials. Type Drawing Feature 1)         One-piece shaft design; 2)         Silver alloy contact materials; 3)         High operating speed; 4)         Separated design; 5)         Fit for use in the working conditions of high temperature. Technical spec Channels 3 rings（for signal） Operation Voltage 0~380VAC/DC Current 120A/Ring Operate speed 3000RPM Contact material Precious Metal Operate temperature -30～240℃ Electric noise Max.40m Ω Dielectric strength 500VAC@50Hz,60s Insulation resistance 500MΩ @600VDC Application ● Rotary tables, test equipment; ● Plating line; ● High-power system; ● Cable reels; ● Weapon system. Option ● Higher voltage and current capacity; ● Higher speed; ● Wider range of temperature; ● Higher protection class; ● Style of exits for lead wires; ● Flange for installation.
